Unimat Spare Part List

Unimat spare parts like belts, screws, connectors, etc incl exact part number can be found in this list.

Read more
Steady Rest

provides a means of supporting long, slender parts and long pieces of bar stock

or to drill a center hole in the end of a long shaft (center drill…

Read more

[1074]

Variable Power Adaptor 12V

Thyristor adjust adaptor incl. 162 491 + Outcab

Input: 230V, 50-60Hz, 85W

Output: 12V, 5A

Read more

[161410]

Face plate steel

a durable and accurate accessory

Ø 49mm

universal use for sanding or turning wood or
metals pieces affixed to the plate.
e.g. for turning of egg…

Read more

[162080]

Drill chuck

Clamping range 0.6 to 6 mm

M12x1

Read more

[162090]

Micro Clamp

easy to use one hand clamp

Read more

[162180]

Milling Tool Set 3, 4, 5, 6 mm

HSS milling tools for processing wood, metals and plastic

Read more

[162190]

[Translate to English:] Symbolbild
HSS Drill Set

20 pcs twist drills 1 - 4 mm in 0,5 mm steps

Each drill 2x

Read more

[162193]

Fly Cutter

For levelling of metals, construction of fittings or accurate steps. Or for production of square, hexagonal and octagonal pieces by using the dividing…

Read more

[162200]

Gear Milling Head

homemade gear wheels. Incl. Modul 0,5. + 1

necessary accessories for gear milling:

  • Art.Nr.162040 Dividing Attachment
  • Art.Nr.162030 Countershaft…
Read more

[162210]

HSS - Turning Tool - Kit - 5 pcs.

More technical data you can find in the enclosed flyer

Read more

[162231]

12V Distribution Cabinet with 5 outlets and 2 cables

Combine several UNIMAT 12V adapters into one power source.

Drive up to 5 motors at the same time.

Ideal for the Power Drive Unit (art. 162 320).

Read more

[162492]

Wood ledge

This material package includes wood ledges (15x10x170 mm) for the edu-project "Zinken/Nuten fräsen"

packing unit 30 pcs.

Read more

[163LEIS]

Unimat ML Countershaft

Precisely machined metal profiles and covers increase the accuracy and stability of the countershaft.

Ideal combination with Tailstock Full Metal…

Read more

[164035]

Unimat ML Tailstock

All parts are machined precisely for accurate centre and pearl drilling.

Quill travel: 30mm

Read more

[164040]

Unimat CNC Cross Slide

All parts are precisely machined.

Stepper motor: 2A

Travel: 50mm





Also available with travel 80mm for z-axis (164 068CNC)

Read more

[164060CNC]

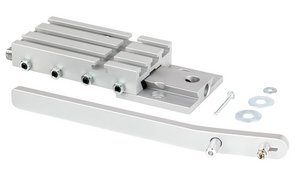

Unimat ML Drill-slide with lever

Travel: 40mm

Read more

[164061]

Milling-Vice MetalLine

Milling - Vice made of tool steel.

Chucking range: 0 - 41mm

Dimension: 88 (109) x 50 x 26mm (LxWxH)

Read more

[164090]

2 position tool post
  • 2 position tool post, for 3.5 - 8 mm tool body height
  • incl height adjustment plates and fastening parts
Read more

[164110]

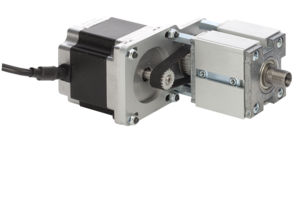

Unimat CNC-rotating axis incl. stepper motor

Precisely machined metal profiles and covers increase the accuracy and stability of the CNC-rotary-attachment.

Toothed belt reduction: 2 (18:36 -…

Read more

[164300 CNC]

Power Drive Unit

The power drive for bigger and harder workpieces.

Not only provides more power for existing applications, but also lets you expand and upgrade your…

Read more

[164320]

Special machine bed 330mm

Special reinforced profile for a higher twist resistant.

colour: silver

Read more

[164400]

Unimat CNC Milling and Engraving Spindle
Speed2000 - 15000 rpm
Power30W
Collet typeER11
Collets useable 1 - 6.35mm (1x 1/8" included)
Read more

[164420CNC]

E-stop/Relay module CNC

with integrated Motor On/Off-Relay (for use of M3 and M5 commands), triggers/releases software emergency stop and head spindle motor brake

Suitable…

Read more

[164425CNC]

Precision Live Center

Grinded center in two special ball bearings enables higher accuracy and better stability.

Read more

[164450]

10 Precision Metal Collets

This brass collets allow for improved grip, durability and precision.

Diameters: 1mm, 1.5 mm, 2mm, 2.35mm, 3mm, 1/8" (= 3.175mm), 3.5mm, 4mm, 5mm,…

Read more

[164460]

Unimat CNC Longitudial-slide 200mm

All parts are precisely machined.
Stepper motor: 2A
Travel: 145mm

Also available in 500mm (164 482CNC)

Read more

[164480 CNC]

Clamping Kit ML

For fixation of various parts on the ML cross-slide or ML saw/sanding table ML (164080)

Read more

[164490]

Housing for UNIMAT CNC machines (turning, milling, laser)

Dimensions of the housing:

Width = 455 mm

Depth = 450 mm

Height = 565 mm (Housing alone) -> 585 mm with the knob on the front side

Read more

[164540]

Relay Box for ext. Devices

Relay box with 2x C14 power sockets, 100-240V, controlled via TCTControl and software
To connect devices like vacuum cleaners, vacuum tables, spindel…

Read more

[164RELBOX]
