Unimat 1 Basic

160100

UNIMAT 1 BASIC was developed specifically for working with wood. The user will be delighted with the UNIMAT 1 BASIC, as their creativity allows them to form turned work pieces and jigsaw models, entirely by hand. Children and beginners can easily make their first steps in woodworking.

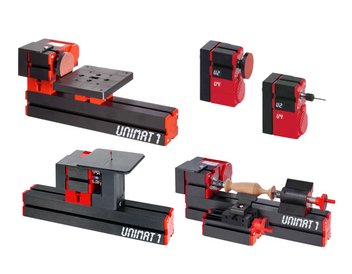

Included in the kit are the components for a jigsaw, variations of woodturning machines, a handheld or stationary sander or a handheld drilling machine.

All the machines of the UNIMAT 1 BASIC are child-friendly. Due to the short stroke of the jigsaw blade, the fingers of a young carpenter cannot be injured. At the same time, the accurate and precise cutting of the saw delights professionals.

Functions

Jig Saw

The powerful jigsaw can be used with plywood, solid wood (up to 7 mm), balsa wood (20 mm), plastics and thin metal sheets. No annoying opening and clamping of the jigsaw blade when cutting windows and notches

Sanding Machine

The stationary rotating sanding disc provides the final touch to your work pieces and can sharpen your tools: from scissors to carving knives, chisels, gouges, etc. It can also be used as a hand-sander for hard-to-reach places.

Wood Lathe

The smallest lathe in the world creates elaborate pieces of turned wood. The small machine achieves an outstanding result with a distance between centers of 135 mm (extendable) and up to 50 mm diameter, while still being childproof. Candle holders, scale masts, gun barrels, doll house furniture ... all easily done.

Woodturning Variants

Faceplate Turning: The work piece is clamped on only one side using the faceplate.

Miniature Lathe: Tiny rods of wood or soft metal (up to 6 mm Ø) can be clamped with collets

Handheld Drill

For drill and engraving bits from 1 to 6 mm. Perfect for drilling at inaccessible spots and engraving.

Technical Data

Motor: 20.000 rpm, 12 VDC
Headstock: M12x1, 8 mm hole through spindle
Gear ratio: 1:5 (4,000 rpm)
Tailstock: M12x1, 15 mm quill travel
Adaptor: 110-240V/50-60Hz,12V DC, 2A

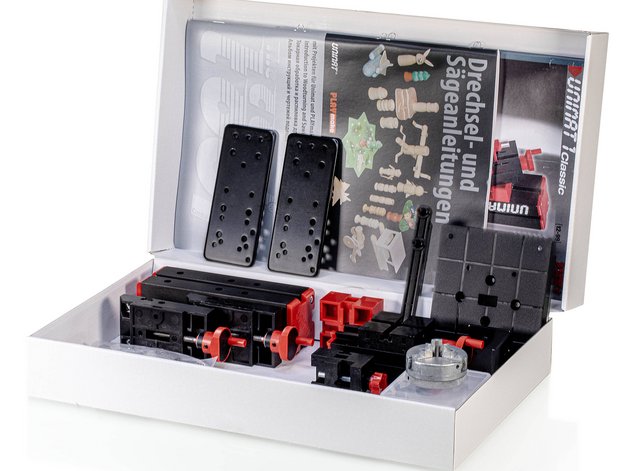

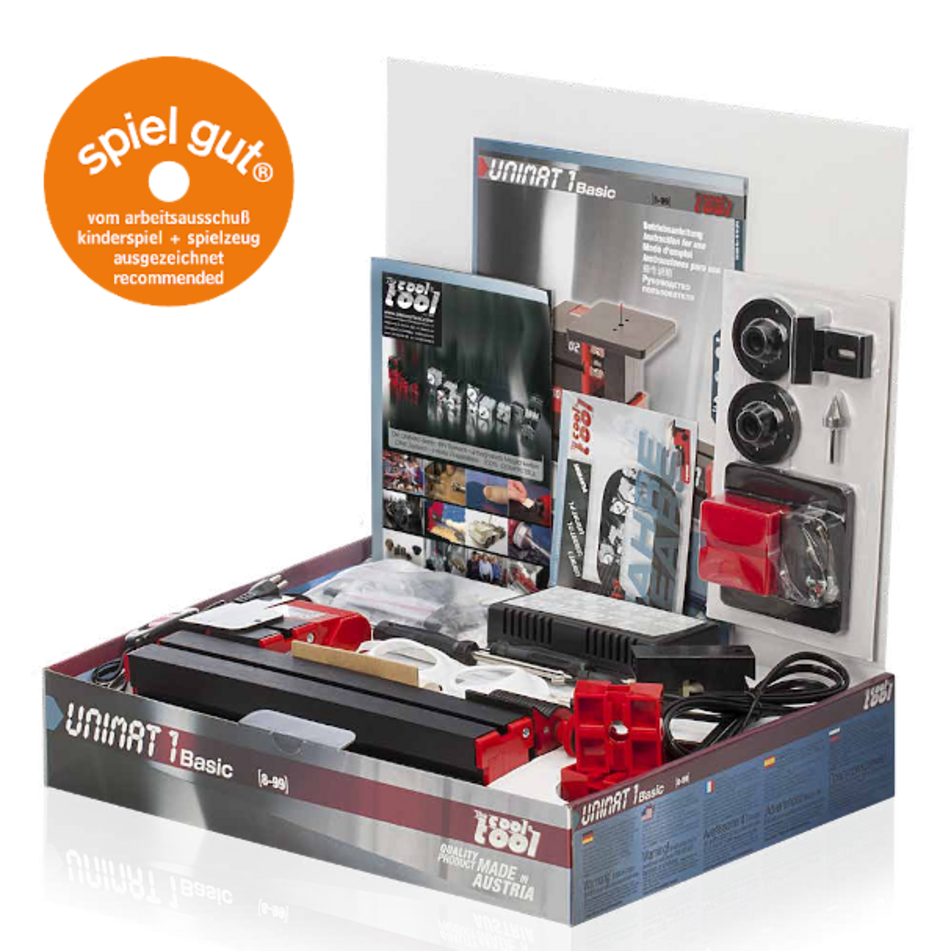

Contents Unimat 1 Basic

160100

Machine bed 271 mm, 12V motor, 12V safety-adaptor, headstock, tailstock, 2x intermediate piece, jig-saw, woodturning rest, 2x sanding disc with sanding paper, collets 1 to 6 mm, turning chissel, drill, screw driver, safety goggles, material starter package, ...
