Unimat PowerLine

160300

More Power for Demanding Applications

The UNIMAT PowerLine is the ideal solution for anyone looking to work more powerfully and efficiently with their UNIMAT system – whether in advanced model building, technical education, or hobby use. As a high-performance extension to UNIMAT 1 and UNIMAT MetalLine, the PowerLine combines the system’s proven modularity with increased power.


🔧 Robust Technology – Compact & Powerful
At the heart of the PowerLine is a powerful motor housed in a durable metal casing.
Power is transmitted via a wide drive belt, ensuring smooth operation and reliable performance – even during extended use.

The PowerLine is designed to seamlessly integrate with existing UNIMAT systems. Combined with a wide range of accessories, it becomes a fully functional compact workshop.


🛠️ PowerLine-Compatible Machine Variants

The PowerLine system enables the construction of the following machine types, among others:

  • Circular saw
  • Scroll saw
  • Router table
  • Lathe
  • Turning lathe
  • Horizontal mill
  • Vertical mill
  • Bench grinder
  • Hand sander
  • Hand drill

For Ambitious Applications
Whether in advanced model making, technical education, or semi-professional use – the UNIMAT PowerLine delivers more power for demanding work.

Robust, compatible, and expandable


🔄 Compatible & Expandable
The PowerLine is fully compatible with UNIMAT 1 and UNIMAT MetalLine systems.
This allows users to expand their workshop as needed – without having to invest in a new system.

Explore the wide range of PowerLine accessories

Browse downloads for PowerLine

Machine variations

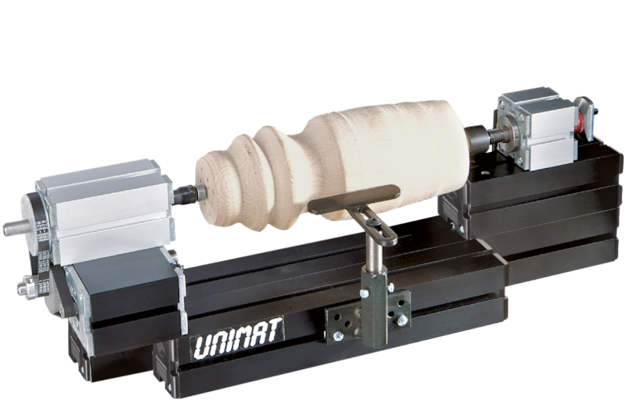

Woodlathe PowerLine

With the Power-Drive Unit and Reduction Set even hard wood up to 100mm diameter can be turned. The professional woodturning attachement provides a secure and vibration free tool rest.

Consists of UNIMAT ML and

  • Power-Drive Unit [164 320]
  • PowerLine Reduction Set [164 325]
  • Extra longmachine bed 460 mm [162 400]
  • Professional Woodturning Attachment [162 340]

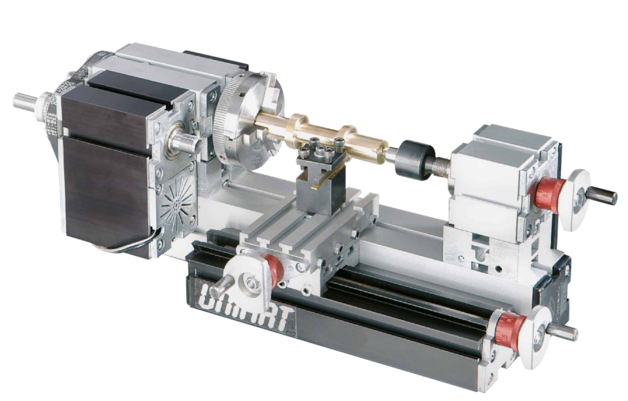

Lathe PowerLine

For precise working up to diameters of 50 mm. With an excentrically adjusted 4-Jaw-Chuck even crankshafts from brass brass can be manufactured. The Reduction Kit combines the the strength of the PowerLine power with the accuracy of the MetalLine.

Consists of UNIMAT ML and

  • Power-Drive Unit [164 320]
  • PowerLine reduction kit [164 325]

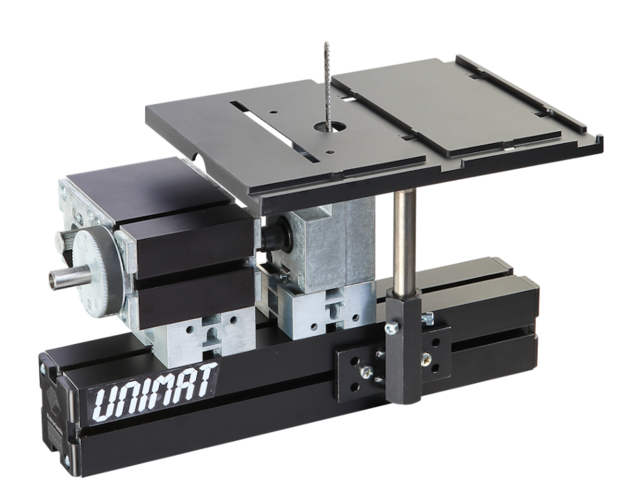

Jig Saw PowerLine

with adjustable stroke

Grinded steel tappet in CNC processed die-casted housing. Adjustable stroke -  4mm (child-friendly) or 8 mm (high performance). Universal saw blade attachment for commercial saw blades.

Constist of UNIMAT ML 6in1 and

  • Power-Drive Unit [164 320]
  • Jig saw ML [164 080]
  • Saw/milling table [162 330]

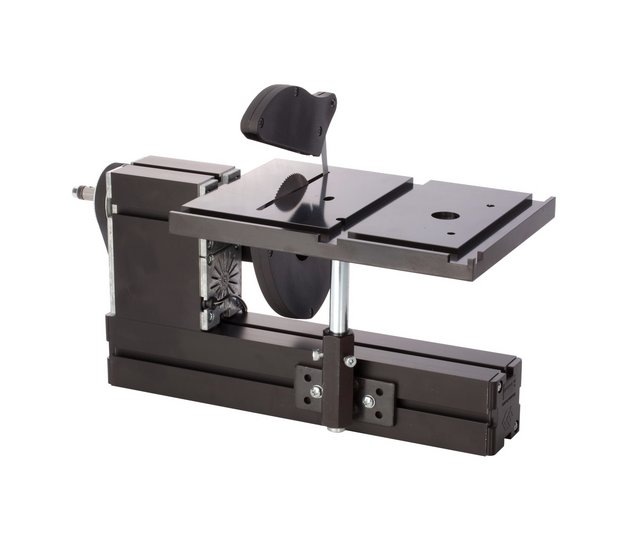

UNIMAT Power Line circular saw

Circular Saw PowerLine

Whether aluminum sheets, wood or acrylics, etc. with the PowerLine circular saw, items from different materials may be cut cleanly. With the adjustable fence and the graduated mitre stop, work pieces can be guided precisely.

Consists of a UNIMAT Set and

  • circular saw [162 330 SET]
  • Power-Drive Unit [164 320]
  • Machine bed short [U7]
PowerLine Horizontal mill

Horizontal mill

Flexible Multi-Axis Machining with Three-Slide Setup

The use of three slides allows flexible machining of workpieces on all planes – ideal for complex multi-axis milling tasks.

Travel distances:
X-axis: 145 mm
Y- and Z-axis: 32 mm each

Tool holder:
Compatible with tools featuring a 1 to 6 mm shank diameter

The perfect solution for precise multi-side machining in model building or technical education.

PowerLine vertical milling machine

Vertical mill

Two slides form a precise cross table with travel distances of 145 mm (X-axis) and 32 mm (Y-axis).
A third slide adds the Z-axis, also with a 32 mm travel distance.

Thanks to the finely adjustable handwheels, drill holes can be made with precise depth and positioning – ideal for accurate work in wood, plastic, or soft metals.

The collet chuck is suitable for tools with 1 to 6 mm shaft diameter.

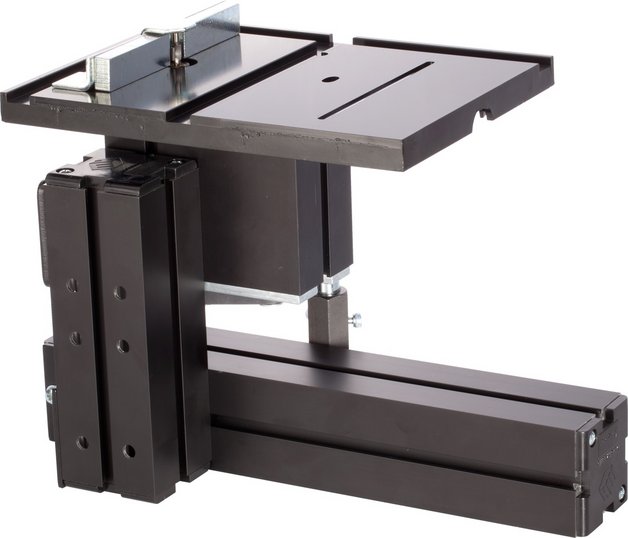

UNIMAT PowerLine Face milling machine

Face milling machine

Ideal for leveling metal surfaces, creating precise fits and steps – or, in combination with the indexing head, for milling 4-, 6-, or 8-sided profiles.

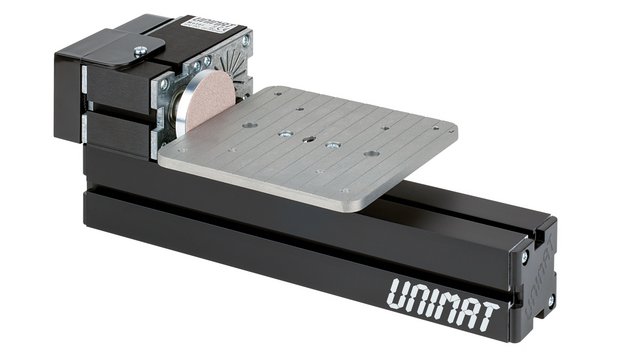

UNIMAT sanding machine

Sanding machine

Safe sanding – perfect for the final finishing touches on workpieces or for easily resharpening your own tools.

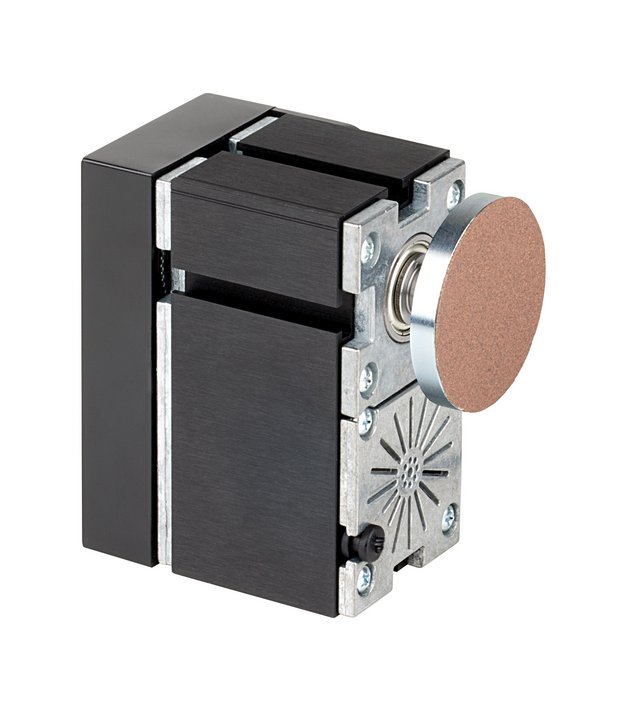

PowerLine Hand sanding machine

Hand sander

The handheld sander enables sanding work even on large workpieces – ideal for hard-to-reach areas.

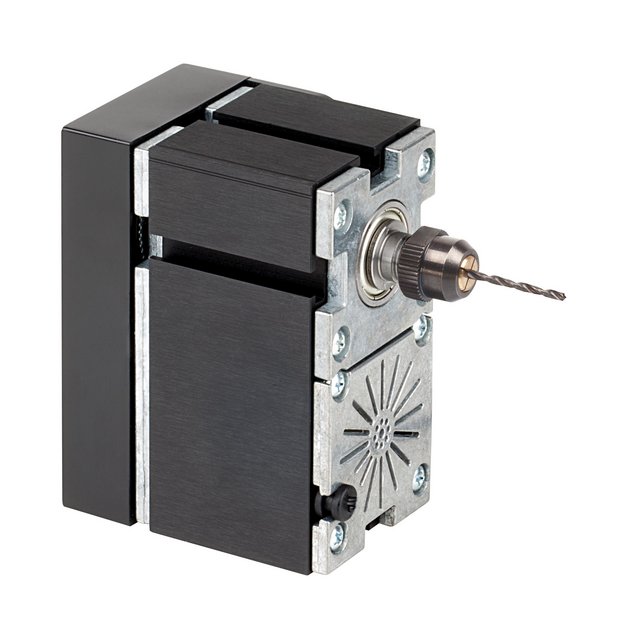

Powerline Hand held driller

Hand held drill

The drill machine is ideal for precise drilling in wood – using drill bits or engraving tools from 1 to 6 mm.
Perfect for drilling in hard-to-reach areas or for fine engraving work.

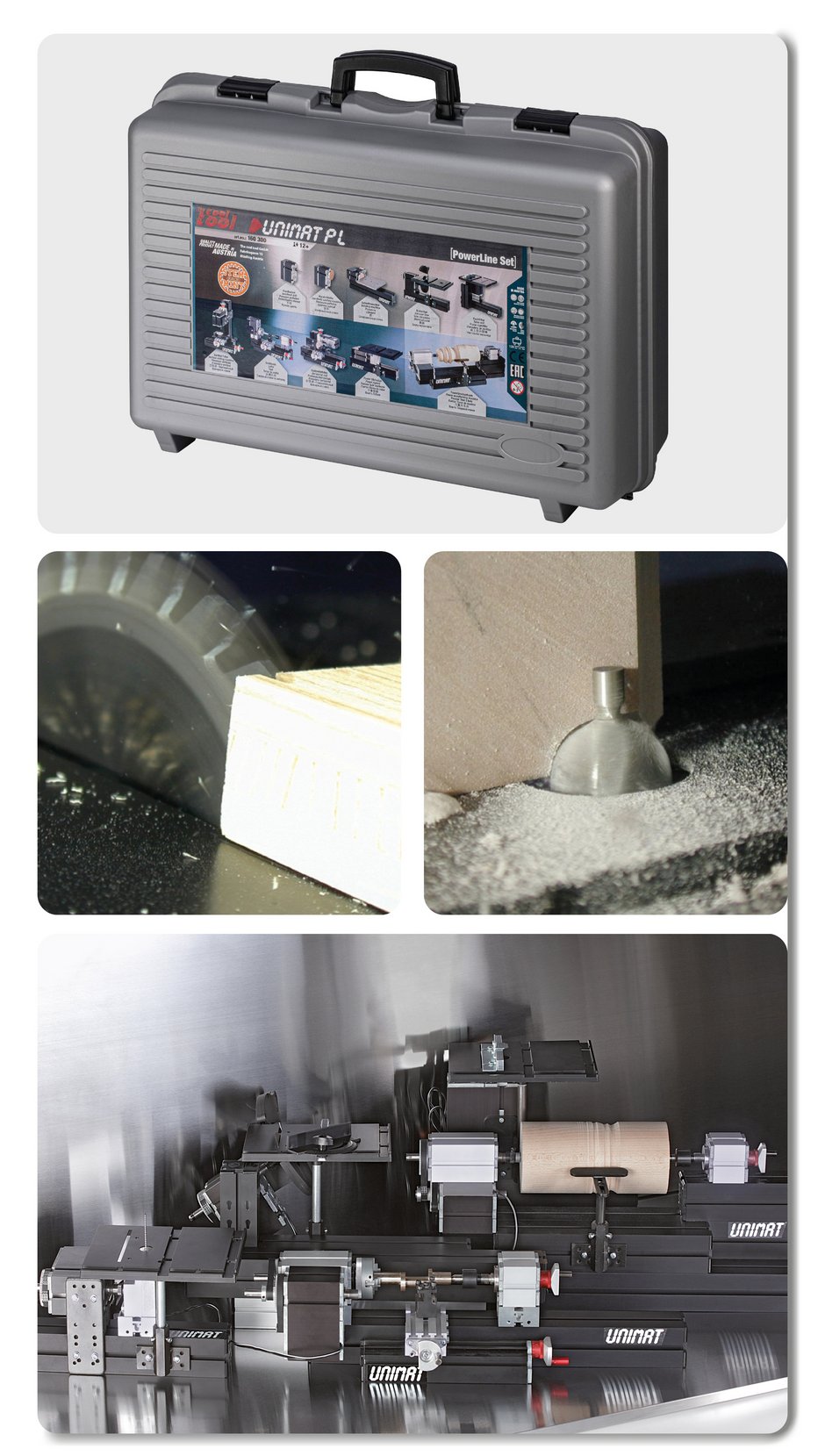

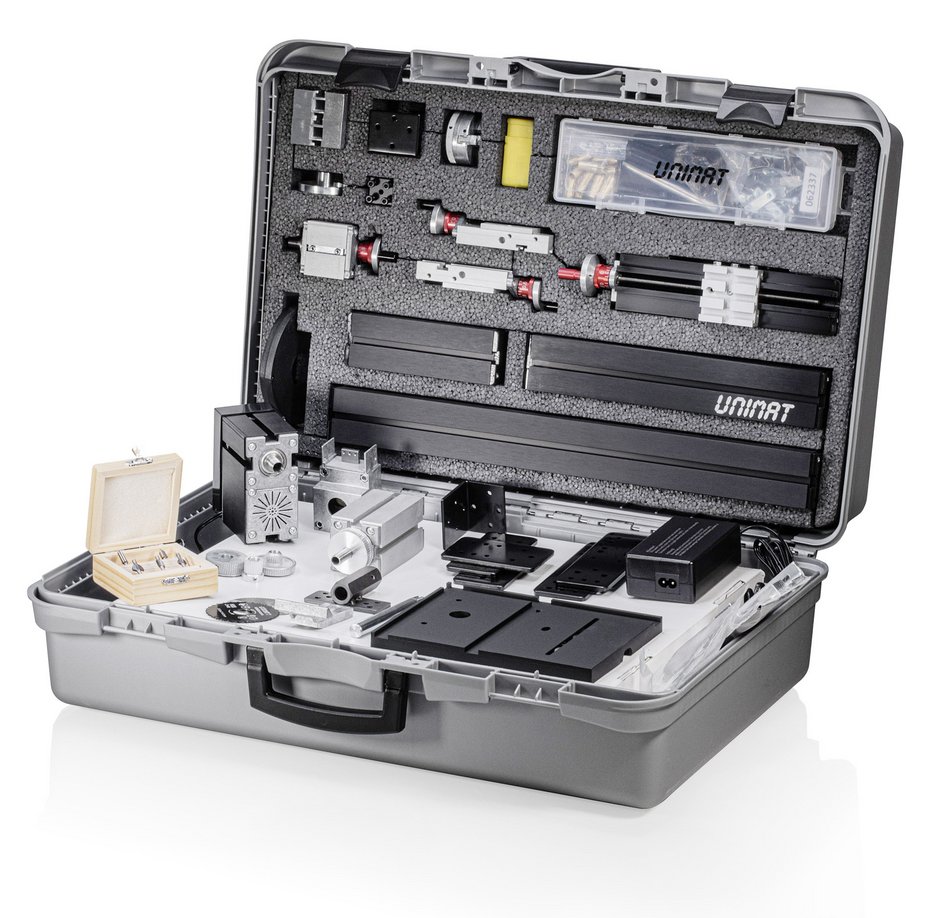

🔧 Modular system for maximum flexibility

For anyone who needs a versatile machine setup in a compact space, the PowerLine System is the ideal solution.
Thanks to its clever modular design, up to 10 different machine variants can be built using just one system – from sander to circular saw.

Quick and easy conversion between configurations ensures maximum flexibility – perfect for the workshop, technical training, or creative projects at home.

Technical Data

PowerLine Drive-Unit

Motor 15300 rpm, 12 VDC, 5A (up to max 12A)
Headstock M12x1, 8 mm hole through spindle
Gear ratio 1:4
Housing Aluminum with metal covers
Dimensions 100x50x95 mm

Tip

For all PowerLine applica­tions we recom­mend our variable Power Adapter [161410] or our PowerLine power supply (161420).
