Unimat 1 Classic
160141
The Machine Set for Model Making & Technology
UNIMAT 1 CLASSIC is the perfect choice for anyone looking to dive deeper into model building and technical applications. Designed for technically interested teens, adults, and professionals, this set offers precise, modular machine solutions in compact form.
🔧 More Technology – All in a Modular Kit
UNIMAT 1 CLASSIC allows for the assembly of six different machine configurations:
- Drill press
- Lathe

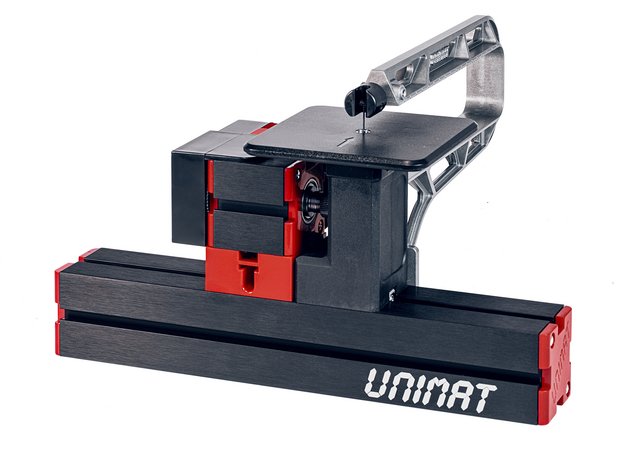

- Scroll saw
- Turning lathe
- Horizontal milling machine
- Sanding machine
The included assembly manual and detailed project book guide you step by step through all machine builds – ideal for ambitious hobbyists and aspiring technicians.
🧰 Modular System – Unlimited Possibilities
Thanks to its smart modular design, UNIMAT 1 CLASSIC is fully expandable:
With optional accessories, users can create a nearly unlimited variety of machines and tools – tailored to personal ideas, needs, and projects.
Whether as an upgrade to the BASIC set or as a complete solution for advanced model making – UNIMAT 1 CLASSIC offers precision, flexibility, and inspiration for technical creativity.
The Functions

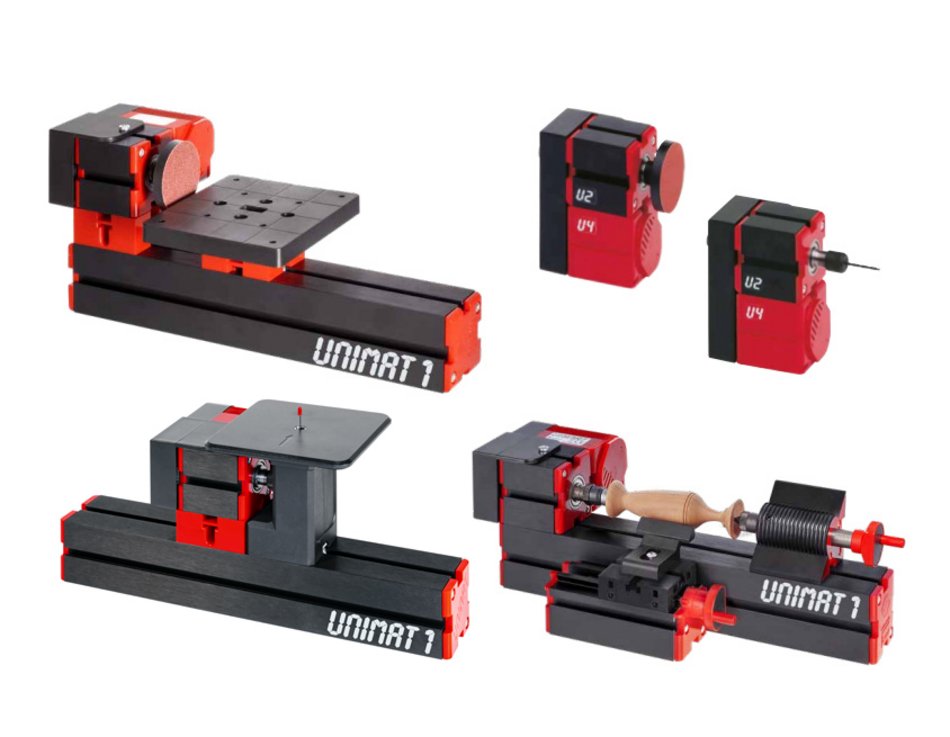

Basic Functions Wood Working
Wood lathe, sander, jig saw, drill - all machine variants of the Unimat1 Basic set are also possible with Classic set.

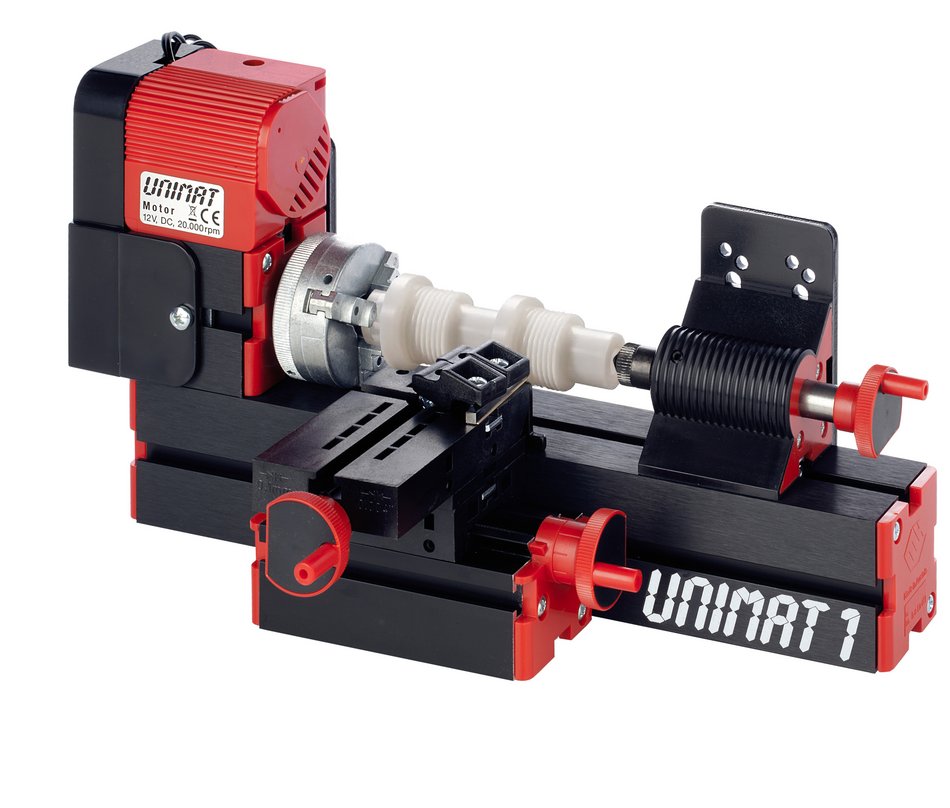

Lathe
Longitudinal and cross slides with scaled hand-wheels allow for precise working. Designed like a professional lathe, UNIMAT 1 offers the possibility of manufacturing axles, rims, cannons, and other turning parts from plastics and soft metals. Distance between centers 135 mm (optionally expandable), center height 25 mm.

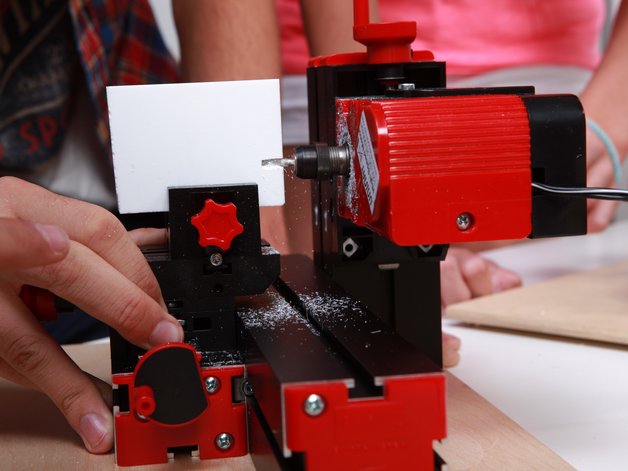

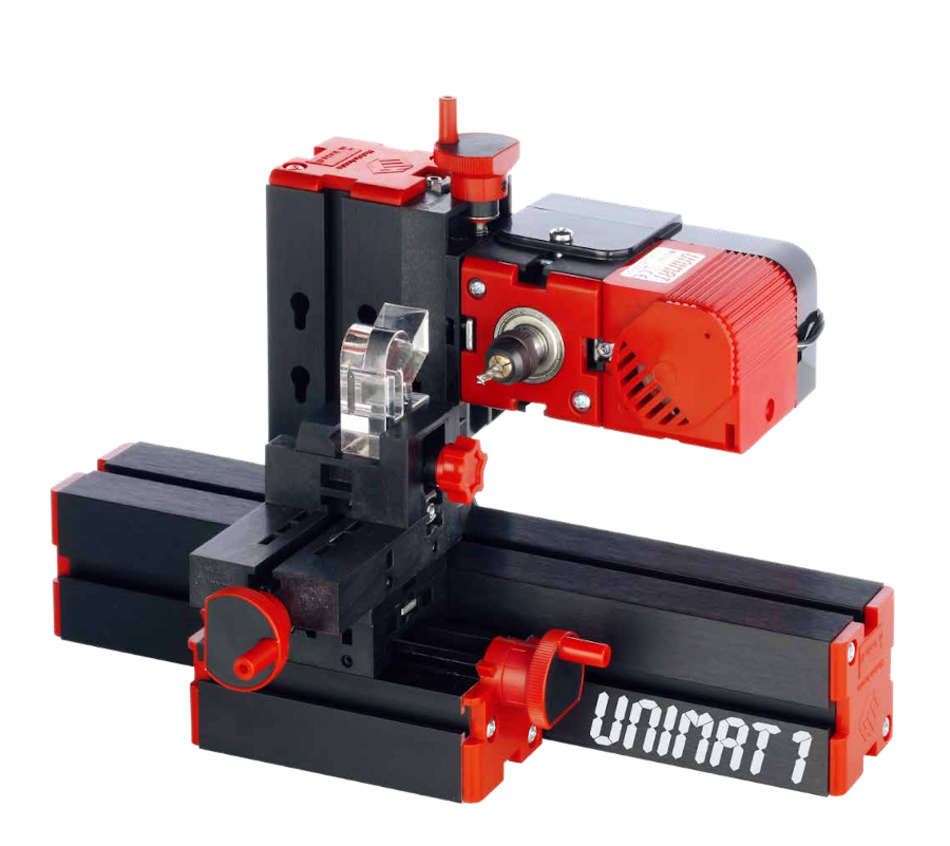

Horizontal Mill
For architectural models, key and slot joints etc. The different collets from 1 to 6 mm clamping range promote a true run of the milling bit. Tilting the slides allows for milling at different angles.
Drill Press
Precise drillings at any angle. The machine offers traverse paths on the X-, Y- and Z-axis - three slides for three dimensional working. A technician‘s delight.
Machine variant Vertical Mill: Equipped with the included HSS end mill, the drill press turns into the vertical milling machine. Any standard tool up to 6 mm can be used!
Technical Data
| Motor | 20.000 rpm, 12 V DC |
| Headstock | M12x1, 8 mm hole through spindle |
| Gear ratio | 1:5 (4000 rpm) |
| Slides (travels) | 2 cross slides (30 mm), 1 long slide (40 mm), screw pitch 1 mm |
| Tailstock | M12x1, 15 mm quill travel |
| 3-Jaw-Chuck | Clamping capacity 1.8-56 mm inside, 12-65 mm outside |
| Adaptor | 110-240V/50-60Hz,14V DC, 2A |
Contents Unimat1 Classic
160141

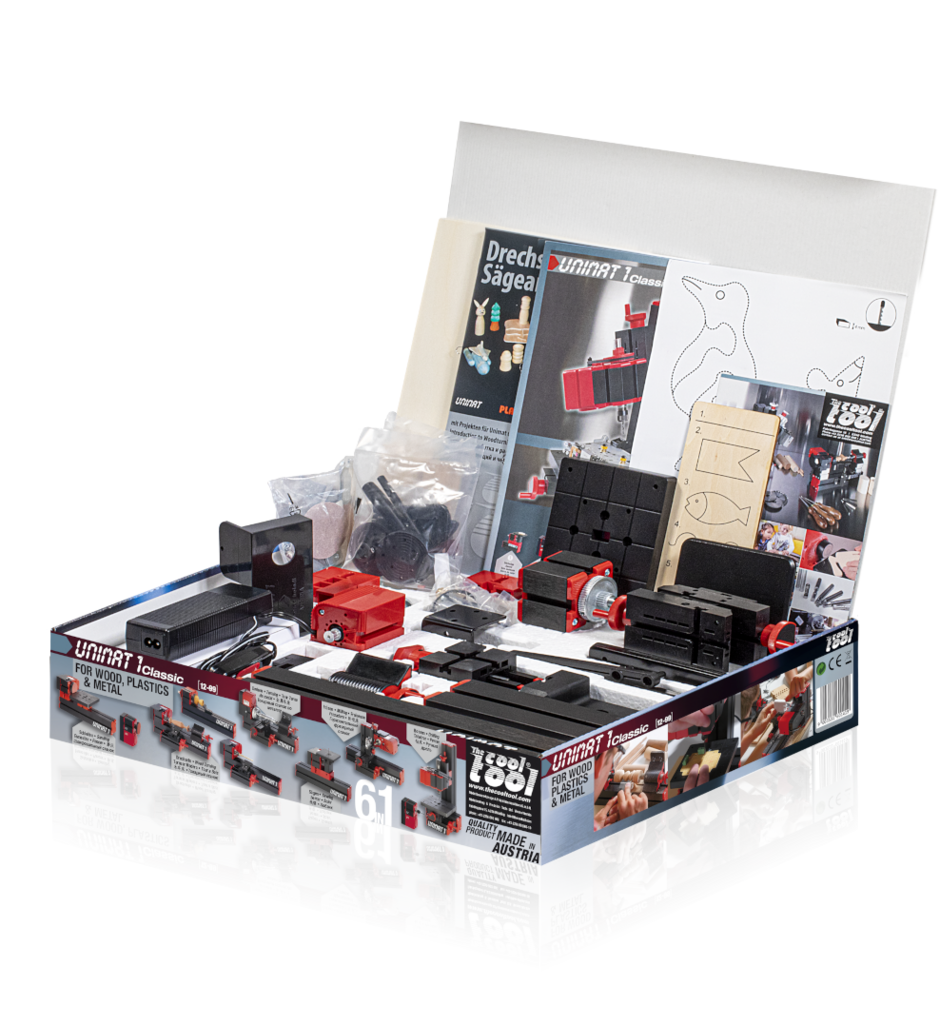

Scope of Delivery – Machine and Accessory Set
This comprehensive set includes all the essential components for flexible machine configurations in technical education or makerspaces. Included are:
- Machine beds: 140 mm and 271 mm
- Carriages: Longitudinal slide, 2× cross slides, tailstock
- Connectors: 3× spacer blocks
- Accessories: Metal 3-jaw chuck, live center, intermediate shaft
- Drive unit: 12 V motor and 14 V safety transformer
- Machine modules: Scroll saw, drill table, turning support
- Sanding tools: 2× sanding discs with sandpaper
- Collet set: 1–6 mm
- Tools: Lathe chisel, drill bit, milling cutter, lathe tool bit
- Assembly parts: Screwdriver, mounting plates and brackets
- Starter material pack: Wood, metal, and more
