Lathes and Mills

The cool tool company has been a reliable partner of Sherline in Europe for many years.

In addition to the machines, we also offer a wide range of Sherline accessories. However, we sell the machines under the names UNITurn and UNIMill.

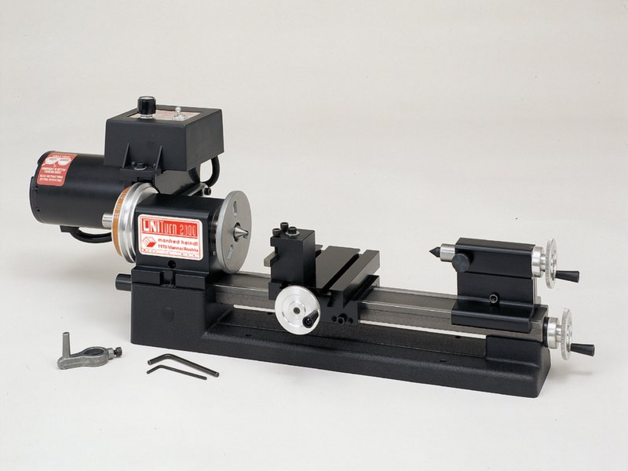

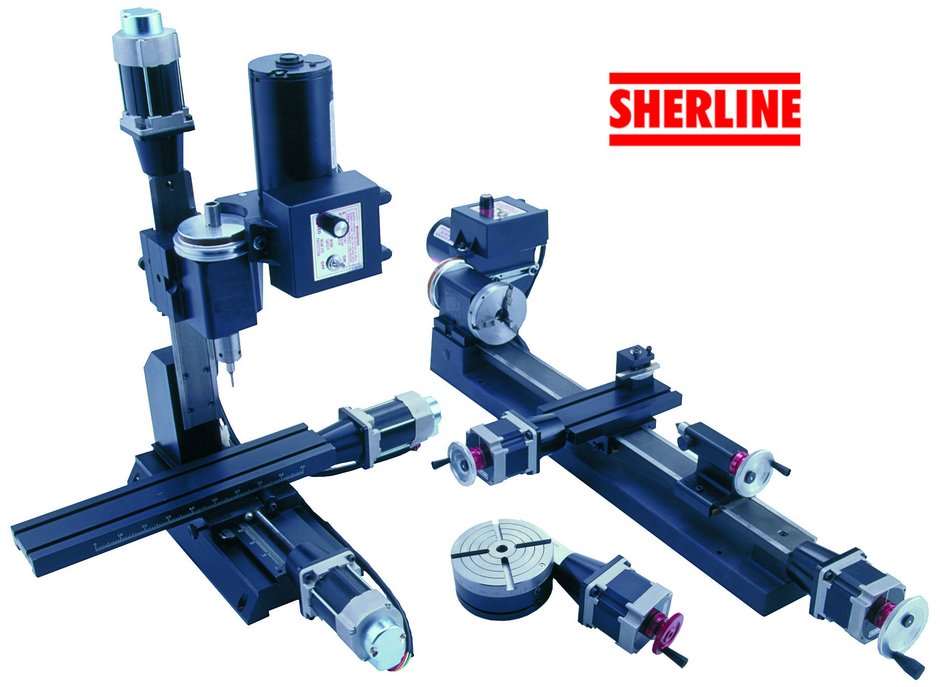

With the machines of the UNITurn and UNIMill line, prototypes and model builders can create complex turned and milled parts. These machines are available in both a manual and a CNC-controlled version and allow turning and milling - even in the hardest materials

Uniturn and Unimill have been on the market for more than 50 years and over time they have been perfected to the smallest detail.

The wide range of this tool system allows for gradually expanding it.

Starting with the basic lathe you can add on all the desired elements and attachments as your skill level and your machining needs evolve ....until you end up with a complete, perhaps perfect tool shop (e.g. you can transform your lathe into a vertical mill or drill press simply by adding the milling column).

Technical Data

 UNIMill DeluxeUNITurn
article number5410201020004300
max. clearance, table to spindle203mm229mm--
throat89mmmax. 200mm--
travel X axis220mm220mm110 mm110 mm
travel Y axis127mm178mm--
travel Z axis159mm137mm--
depth overall356mm565mm190mm220mm
width overall381mm381mm610mm820mm
height overall527mm568mm150mm200mm
table size70x330mm70x330mm--
swing over carriage--22.5mm22.5mm
swing over bed--45mm45mm
distance between centers--200mm430mm
hole through spindle10mm10mm10mm10mm
spindle nose thread3/4" - 16 T.P.I.3/4" - 16 T.P.I.3/4" - 16 T.P.I.3/4" - 16 T.P.I.
spindle nose taper#1 Morse#1 Morse#1 Morse#1 Morse
 travel of tailstock--38mm · 1,49"38mm · 1,49"
taper of tailstock spindle--#0 Morse#0 Morse
protractor graduations0° - 45°0° - 45°0° - 45°0° - 45°
handwheel graduations0.01mm0.01mm0.01mm0.01mm
motor

Input: 100-240V

90 Volt DC
Power 60W

Input: 100-240V

90 Volt DC
Power 60W

Input: 100-240V

90 Volt DC
Power 60W

Input: 100-240V

90 Volt DC
Power 60W

electronically controlled spindle speed range70 - 2,800 rpm70 - 2,800 rpm70 - 2,800 rpm70 - 2,800 rpm
weight16.3kg17.2kg10.9kg13.6kg

  UNIMill Deluxe UNITurn
  5410 2010 2000 4300
max. clearance, table to spindle 8.00" 9.00" - -
throat 8.00" 9.00" - -
travel X axis 9.00" 9.00" 4.25" 4.25"
travel Y axis 5.00" 7,00" - -
travel Z axis 6.25" 5.38" - -
depth overall 14.00" 22.25" 7.50" 8.75"
width overall 15.00" 15,00" 24.00" 32.25"
height overall 20.75" 23.38" 6.00" 8.00"
table size 70x330mm 70x330mm - -
swing over carriage - - 1.75" 1.75"
swing over bed - - 3.50" 3.50"
distance between centers - - 8.00" 17.00"
hole through spindle 0.405" 0.405" 0.405" 0.405"
spindle nose thread 3/4" - 16 T.P.I. 3/4" - 16 T.P.I. 3/4" - 16 T.P.I. 3/4" - 16 T.P.I.
spindle nose taper #1 Morse #1 Morse #1 Morse #1 Morse
 travel of tailstock - - 1.49" 1.49"
taper of tailstock spindle - - #0 Morse #0 Morse
protractor graduations 0° - 45° 0° - 45° 0° - 45° 0° - 45°
handwheel graduations 0.001" 0.001" 0.001" 0.001"
motor

Input: 100-240V

90 Volt DC
Power 60W

Input: 100-240V

90 Volt DC
Power 60W

Input: 100-240V

90 Volt DC
Power 60W

Input: 100-240V

90 Volt DC
Power 60W

electronically controlled spindle speed range 70 - 2,800 rpm 70 - 2,800 rpm 70 - 2,800 rpm 70 - 2,800 rpm
weight 36lb 38lb 24lb 30lb

Specifications

  • powerful motor, speed controlled from 70 to 2800 rpm
  • laserengraved adjustable handwheels, 1 scale interval equals 1/100mm slide travel
  • tolerance on the bearings less than 1/10.000mm
  • threading tools for 32 metric and 28 in inch threads, each left- and right (optional)

Applications

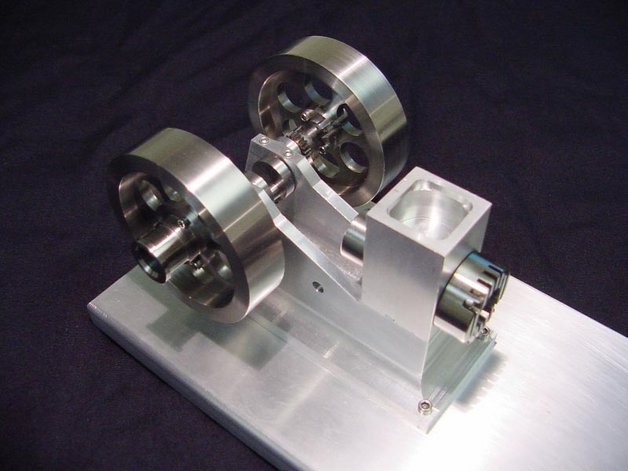

Uniturn and Unimill can handle almost any material (even hardened steel). Therefore they are suitable for a wide variety of applications i.e. professional model making, toolmaking, small series production, prototyping and many others.

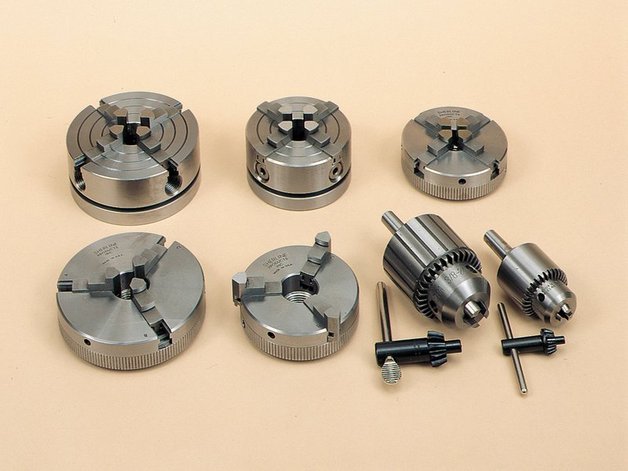

wide range of Accessories

A wide variety of accessories, usually associated with heavy duty industrial machines, offers solutions to every conceivable machining. Uniturn and Unimill have the largest operational range in its class.

→ explore accessories
